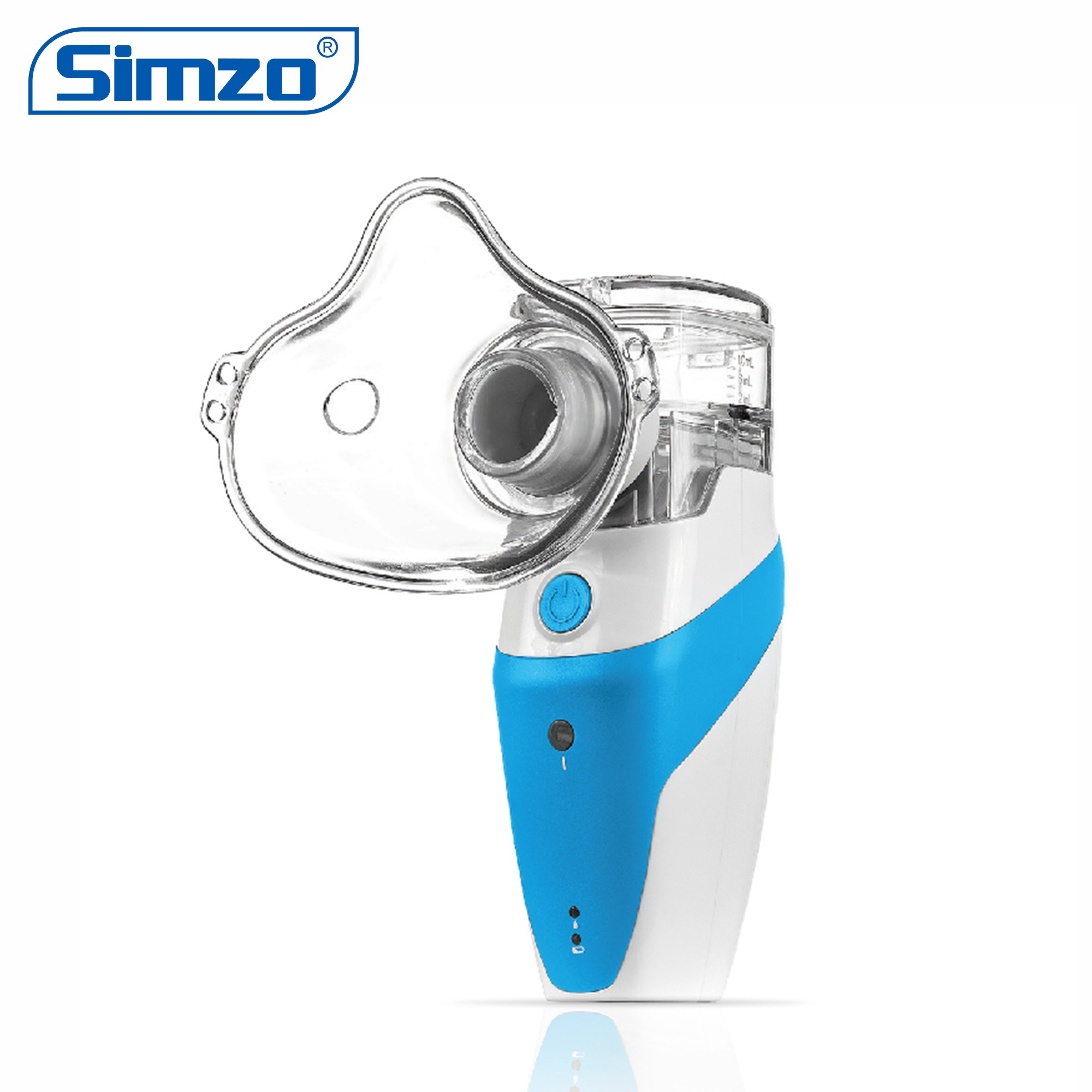

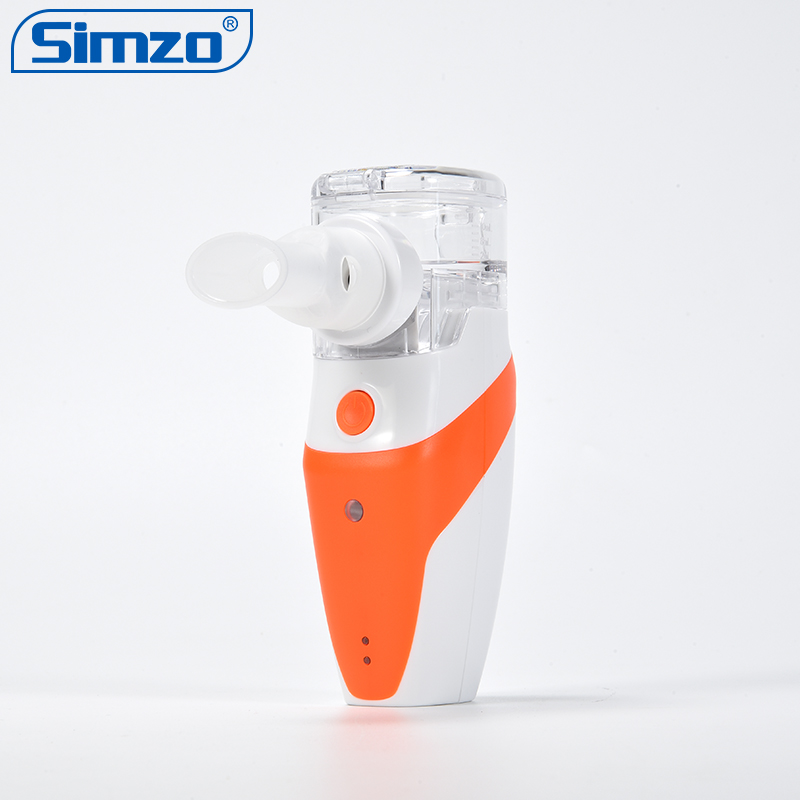

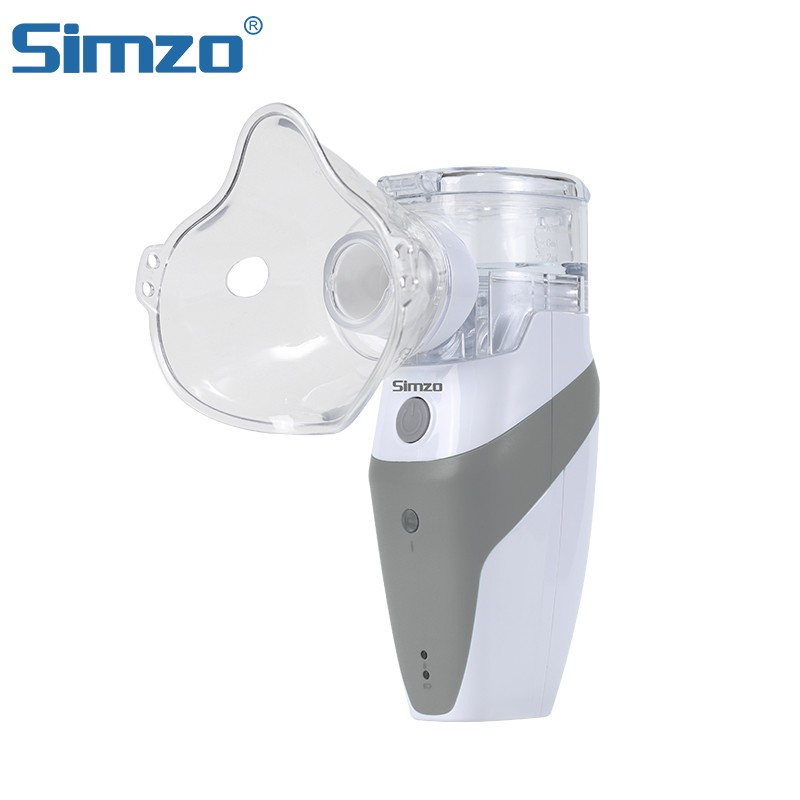

SIMZO Rechargeable nebulizer

  • Model number : NBM-4B
  • From : SIMZO
SIMZO Rechargeable nebulizer

Description


simzo Rechargeable Portable Mesh Nebulizer

1. The device utilizes a mesh which is ultrasonically vibrated at a high-speed to turn liquid medications into aerosols. These aerosols are then sent to the respiratory tract subsequently with the airflow of human respiration to achieve therapeutic effects.

2. The device is a small and portable nebulizer.

3.The device will automatically turn off after 20 minutes of continuous operation or, if the liquid in the medication cup is detected at an extremely low level within the 20-minute period.

4. The device has an indicator LED for battery voltage status.

Model Number

NBM-4B

Power Supply

d.c.3.7V Lithium battery or d.c 5V/1A

Power Consumption

< 2VA

Standby current consumption

< 0.1 mA

Nebulization rate

>0.2mL/min

Particle Size(MMAD)

<5μm

Maximum fill volume

10 mL

Minimum filling amount of drug

1 mL

Noise level (dBA)

≤50dBA

Time AUTO-OFF

After Power on, continuous operation about 20 minutes to auto-off

Nebulizer auto-off

No medication

Operation environment

10-40°C, 10%-95%RH, 86-106kPa

Storage and transportation environment

-20°C to 70°C, 10%-95% RH, 50-106kPa

Degree of protection against electric shock

Type BF applied part

Grade of waterproof

IP22

Size (mm)

About 46*67*125

Weight (g)

About 115g
